Shandong Sinosail Dredging Equipment Co., Ltd. is one of the leading manufacturers and suppliers of zhcsd-450 cutter suction dredger in China, specialized in providing high quality customized products with low price. If you're going to buy discount zhcsd-450 cutter suction dredger made in China, welcome to get quotation from our factory.

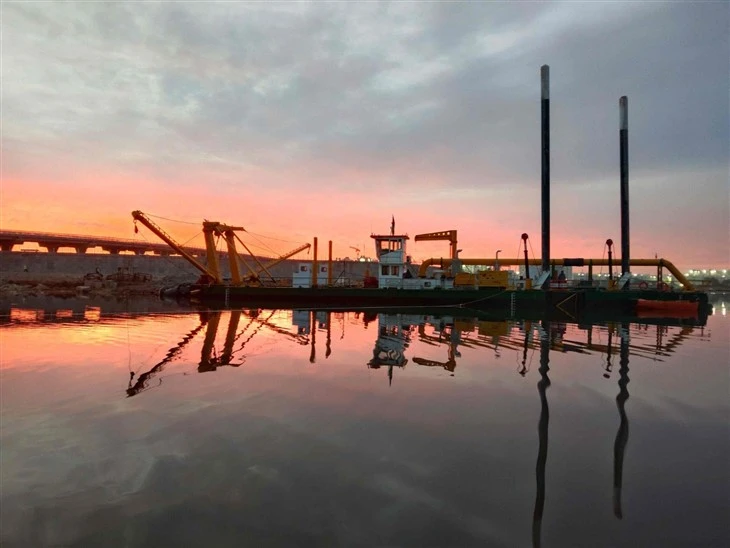

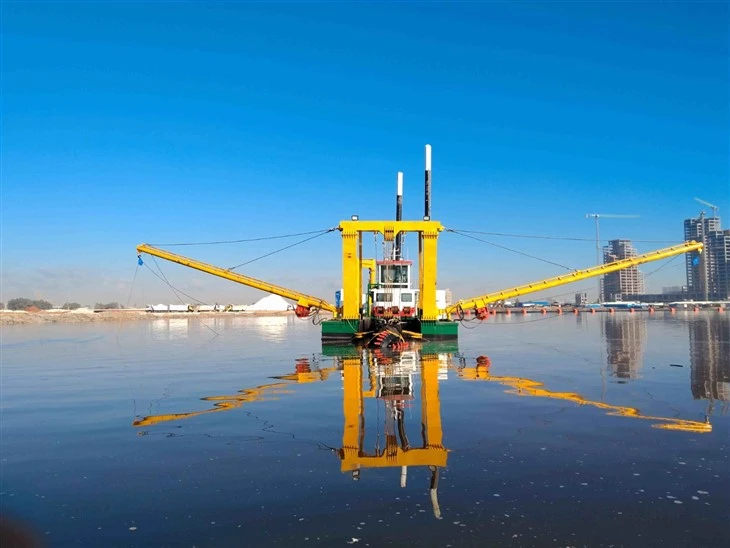

ZHCSD-450 Cutter Suction Dredger is an efficient dredging solution that integrates excavation, suction, and transportation functions into one complete system. It is widely used for river improvement, lake desilting, port construction, channel maintenance, and sand extraction projects. Equipped with a powerful cutter head system, the dredger can effectively loosen and remove various underwater materials, including mud, clay, sand, and sediment.
With a maximum slurry capacity of 3000 m³/h and a dredging depth of up to 15 meters, ZHCSD-450 is capable of meeting the requirements of large-scale dredging operations. The dredger supports a discharge distance of up to 1000 meters, providing efficient material transportation and improving overall construction efficiency.
Products Description
| Model | ZHCSD-450 |
| Slurry capacity | 3000m3/h |
| Slurry concentration | 15-20% |
| Length overall(ladder raised) | 37m |
| Breadth | 7.2m |
| Height | 2.0m |
| Dredging depth | 15m |
| Discharge distance | 1000m |
| Total power | 1007kw |
| Hydraulic winch | 80kn |
| Cutter power at shaft | 115kw |
FAQ
Q:What is the maximum dredging depth of the ZHCSD Cutter Suction Dredger?
A:The standard configuration can achieve a maximum dredging depth of 18 meters. For deeper operations, a deep-water pump system can be equipped to meet special project requirements.
Q:How far can a Cutter Suction Dredger transport dredged material?
A: The standard discharge distance is usually 1.5–2 km. The actual distance depends on dredge pump performance, sediment concentration, and site conditions.
Q:What project information is required when purchasing a Cutter Suction Dredger?
A: Customers should provide dredging depth, sediment concentration, whether impurities are present, discharge distance, and other site information. If available, construction site photos can also be provided for more accurate equipment configuration.
Q:Can the Cutter Suction Dredger be customized according to project requirements?
A:Yes. The cutter head, dredge pump, engine system, and hull structure can be customized according to working conditions, dredging depth, material characteristics, and discharge distance.
Q:Does a Cutter Suction Dredger require spud poles?
A: Spud poles are mainly used to fix the dredger position and improve operational stability in shallow water areas and complex working conditions. The configuration depends on specific project requirements.
