Shandong Sinosail Dredging Equipment Co., Ltd. is one of the leading manufacturers and suppliers of diamond washing plant in China, specialized in providing high quality customized products with low price. If you're going to buy discount diamond washing plant made in China, welcome to get quotation from our factory.

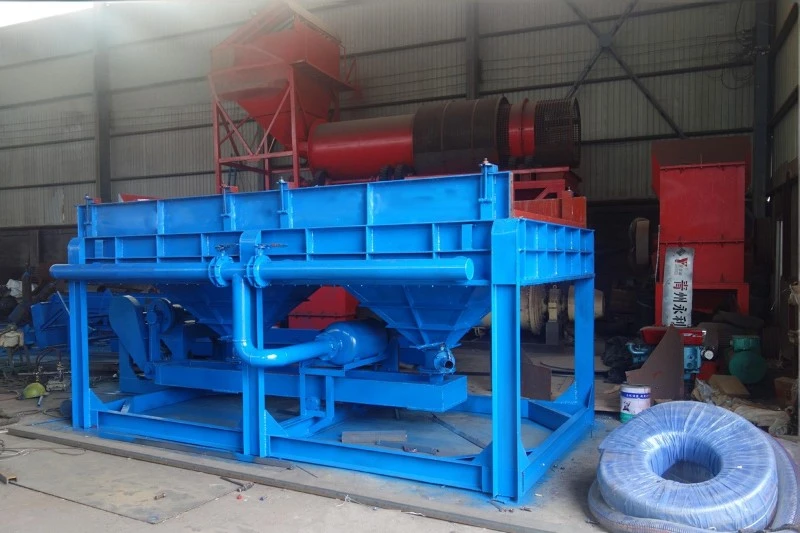

A diamond washing plant is a specialized device for efficiently extracting natural diamonds from diamond-bearing mineral sands, gravel, and alluvial deposits. It uses a vibrating feeder to remove large stones, followed by a drum washing machine to thoroughly clean the ore surface. The washed ore then passes through a high-frequency vibrating screen to ensure high-purity diamond recovery. This equipment typically employs a robust and durable structural design and highly efficient separation technology, effectively improving diamond recovery rates and offering the highest and fastest return on investment due to its cost-effectiveness.
Technical Parameter
|
Model |
Working Capacity |
Power |
Water Consumption |
Recovery Rate |
|
|
ZH-50 |
50m3/h |
50KW |
100m3 |
90-95% |
|
|
ZH-100 |
100m3/h |
100KW |
200m3 |
90-95% |
|
|
ZH-150 |
150m3/h |
150KW |
300m3 |
90-95% |
|
|
ZH-200 |
200m3/h |
200KW |
400m3 |
90-95% |
|
|
ZH-250 |
250m3/h |
250KW |
500m3 |
90-95% |
|
|
ZH-300 |
300m3/h |
300KW |
600m3 |
90-95% |
We also can supply others upon customer' s request.
Product Advantage
- Advanced intelligent sorting system
This equipment is equipped with a multi-layer vibrating screening system, which can accurately distinguish ores of different particle sizes, ensuring that no valuable materials are lost during the separation process, thereby guaranteeing the purity of the diamonds during the separation process.
- High efficiency of washing and screening process
The diamond washing plant is designed with a rotating washing tub to minimize damage to the diamond crystals, and its water circulation system minimizes water consumption during use, effectively reducing operating costs
- Robust structural design
This equipment uses high-strength steel in its overall structure, which has excellent corrosion resistance, and wear-resistant materials are also used in key wear-prone parts to ensure stable operation even in harsh environments.
- Save operating costs
This equipment adopts an automated control system, which significantly reduces labor costs. At the same time, it features a modular design, which allows for rapid maintenance and replacement of equipment components, minimizing downtime.
Product features
Ability to select different equipment models based on the scale of the mine.
Able to adapt to various climatic conditions
Achieve solid-liquid separation and dry stacking of tailings.
Application fields:
Mining of alluvial and placer deposits such as river sediments
Primary Kimberlite Mining
Secondary processing of the mined tailings piles.
Large, medium and small washing and beneficiation plants
